Model : CLOSE TYPE PNEUMATIC AND HYDRAULIC QUICKCOUPLNG(STAINLESS STEEL304)
Brand：ZMTE

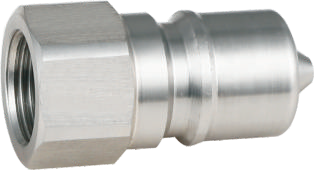

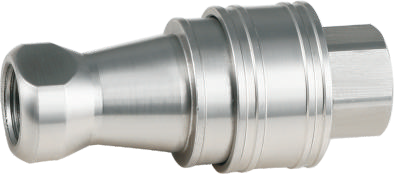

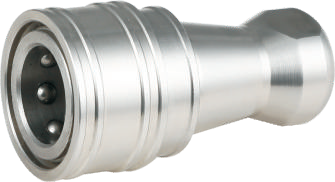

Close type hydraulic quick coupling ( steel )
Features:
KZF series couplings feature:
·Poppet valves available to prevent uncoupled leakage.
·Poppet valves open automatically when coupled, within rated working pressure, to keep the flow expeditely.
·Dependable ball-locking mechanism holds the mating halves together.
·Socket and plug are precision machined from solid bar stock.
·KZF series conforms to the standard of ISO7241-B.
·Compatible with PARKER 60 Series,FASTER HNV Series,AEROQUIPFD45 Series and HANSEN HKSeries.
Applications:
KZF couplings,are used across the spectrum of hydraulic applications.these Double Shut-Off couplings can be found any where that fiuid transfer lines need to be connected and disconnected for operation or maintenance of equipment,and a loss of fluid is undersirable.Primarily used with hydraulic fluid. KZF couplings are also used with chemicals,water,steam,and some gases.
Welcome to download our catalog for your reference.
